SAKA TECHNO VENTURES PVT. LTD. is a trusted name in India for the supply and installation of Fire Rated Doors, Hollow Metal Doors, Wooden Fire Rated Doors, Glass Fire Rated Doors, Clean Room Doors, and Electric Shaft Doors — all compliant with required Government Certifications and Fire Safety Standards.

Our products are manufactured and supplied in accordance with relevant IS standards, fire safety norms, and statutory compliance requirements, ensuring reliability, durability, and maximum fire protection for commercial, industrial, and residential projects.

We provide certified fire door solutions with:

✔ Government Approved & Certified Products
✔ Fire Rating Options – 30, 60, 90 & 120 Minutes
✔ Compliance with National Building Code (NBC) Guidelines
✔ Tested & Quality-Assured Materials
✔ Professional Installation & AMC Support

With years of expertise and a strong execution team, SAKA TECHNO VENTURES PVT. LTD. delivers safe, durable, and regulation-compliant door systems across India.

DOORS

Our Products
✔ Fire Rated Steel Doors
Certified and tested doors designed for maximum fire resistance and safety compliance.
✔ Wooden Fire Rated Doors
Engineered wooden doors with certified fire rating and premium finish.
✔ Hollow Metal Doors
Strong, durable, and suitable for industrial and commercial applications.
✔ Clean Room Doors
Specially designed doors for pharmaceutical, hospital, and controlled environments.
✔ Glass Fire Rated Doors
Modern safety solutions combining transparency with fire protection.
✔ Electric Shaft Doors
Safe and secure shaft doors as per building standards.

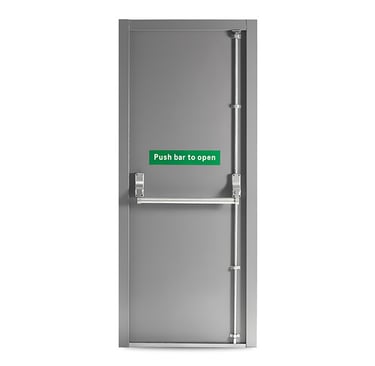

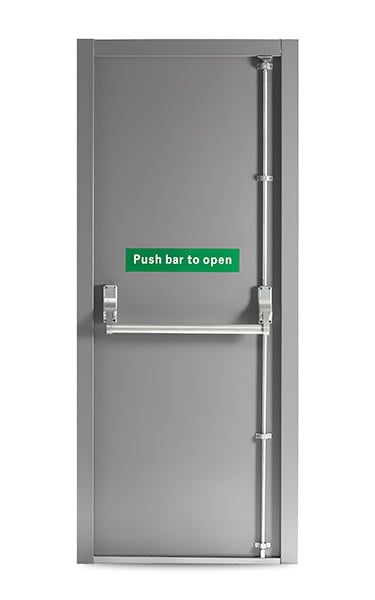

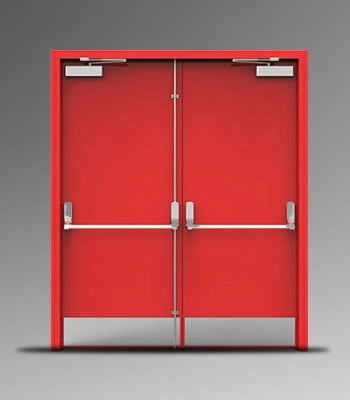

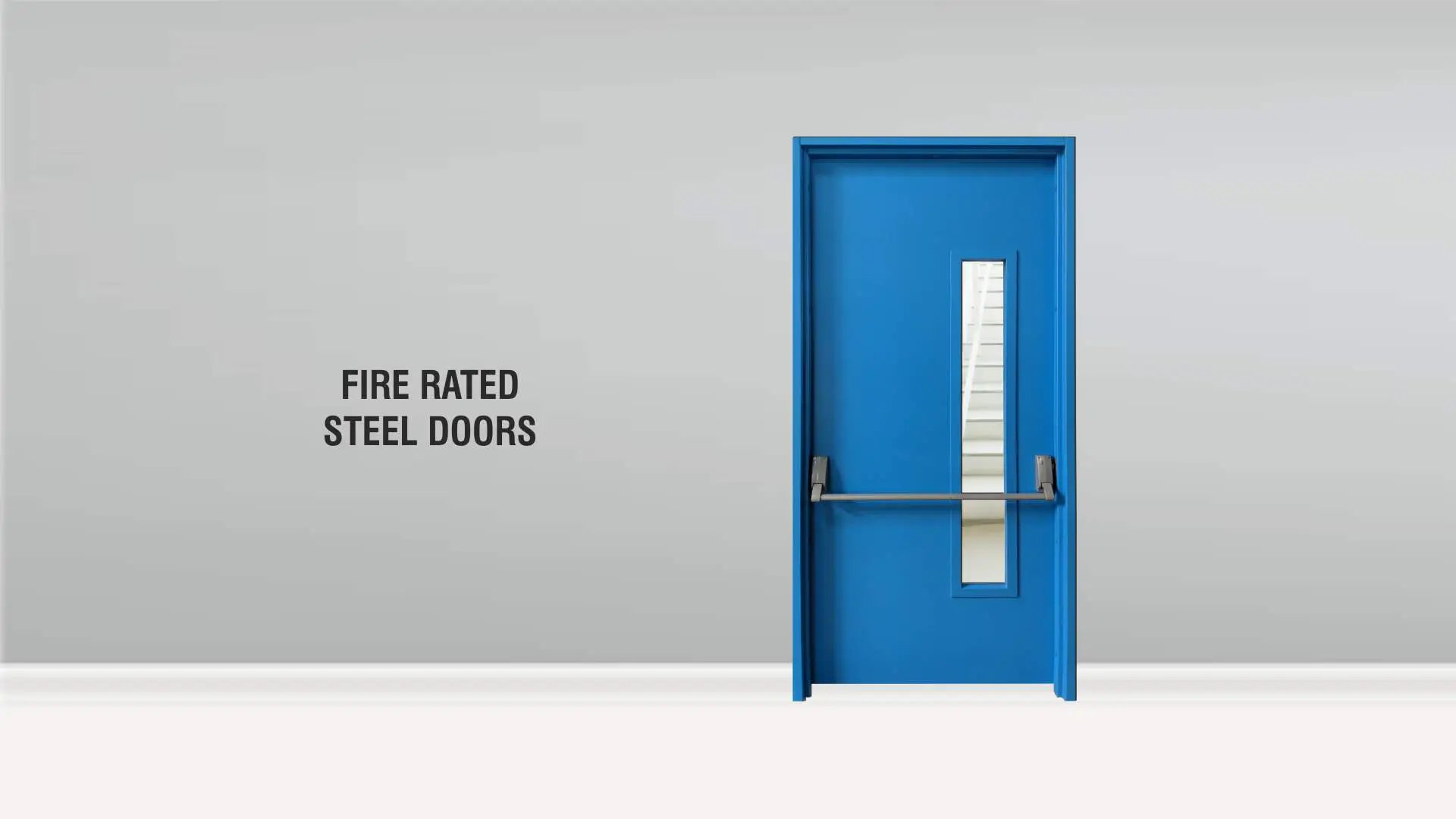

Fire Rated Steel Door

Premium Fire Protection with Certified Safety

Fire Rated Steel Doors are specially designed to prevent the spread of fire and smoke for a specified time period. These doors are widely used in commercial buildings, hospitals, factories, residential towers, and industrial projects.

Key Features

✔ Fire Rating: 60 / 90 / 120 Minutes (as per requirement)
✔ Heavy-duty galvanized steel construction
✔ Rockwool / Honeycomb infill options
✔ Powder coated finish (Any RAL color)
✔ Compatible with fire-rated hardware
✔ Durable, rust-resistant & low maintenance

Applications

  • Staircase & Fire Exit Areas

  • Electrical & Service Rooms

  • Industrial Units

  • Commercial Buildings

  • Hospitals & Institutions

Advantages

  • Controls fire & smoke spread

  • Increases building safety compliance

  • Long service life

  • Strong & impact resistant

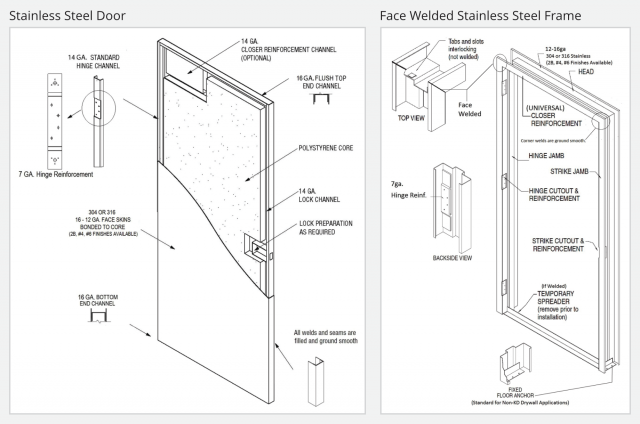

Fire Rated Steel Door – Technical Specifications
Door Leaf Construction

  • Door Thickness: 45 mm / 50 mm / 55 mm (as per fire rating)

  • Face Sheet Thickness: 0.8 mm / 1.0 mm / 1.2 mm GI (as per project requirement)

  • Infill Material:

    • High-density Rockwool (48–64 kg/m³)

    • Ceramic wool (for higher rating)

    • Honeycomb (non-fire rated option)

  • Reinforcement Plates: Provided for hinges, lock, door closer, panic bar

  • Edge Profile: Interlocking seam / folded edge design

Door Frame Construction

  • Frame Material: Galvanized Steel (1.2 mm / 1.6 mm thickness)

  • Frame Profile: Single / Double rebate

  • Anchoring: Holdfast / Anchor fasteners

  • Finish: Powder coated (60–80 microns thickness)

  • Gasket: Intumescent fire & smoke seal

Fire Rating

  • 60 Minutes

  • 90 Minutes

  • 120 Minutes
    (Tested as per relevant IS / International standards as project requirement)

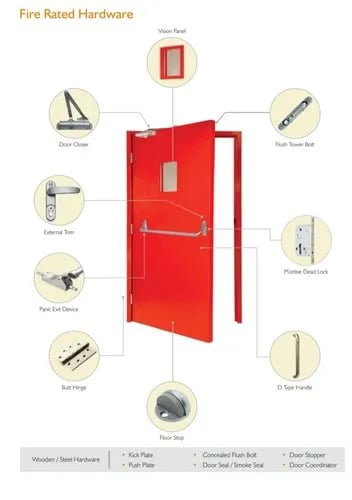

Hardware Compatibility

  • Fire-rated Hinges (3 / 4 Nos.)

  • Mortise Lock (Fire Rated)

  • Door Closer (Overhead / Concealed)

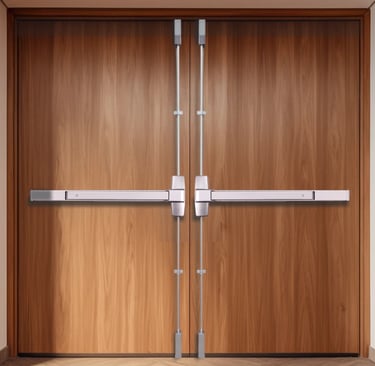

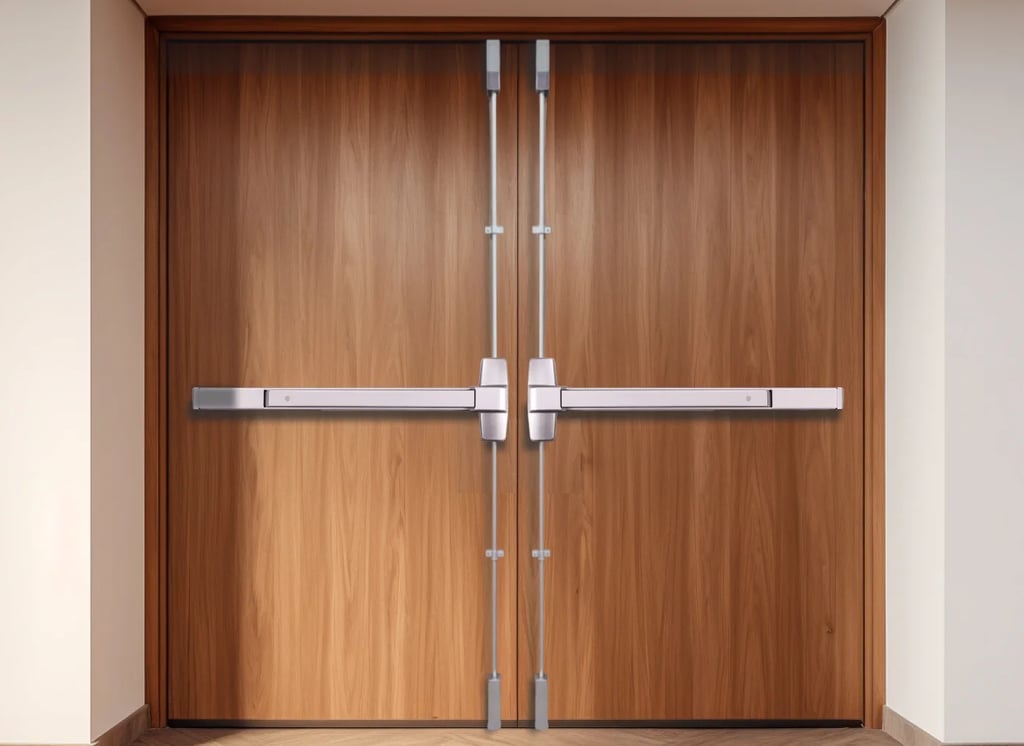

  • Panic Bar (For Fire Exit)

  • Vision Panel with Fire Rated Glass (Optional)

  • Drop Seal (Optional for smoke control)

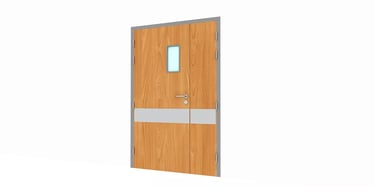

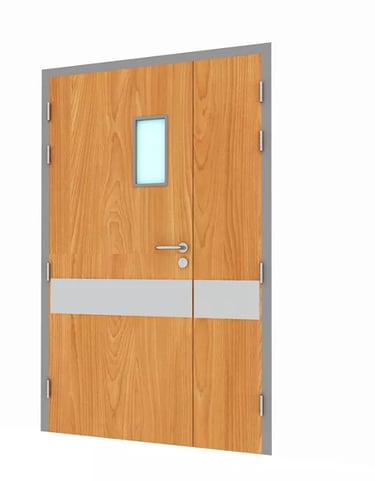

Metal Fire Rated Wooden Finish Doors

Metal Fire Rated Wooden Finish Doors combine the durability and fire resistance of steel with the elegant appearance of natural wood. These doors are ideal for hotels, offices, hospitals, commercial complexes, and residential projects where aesthetics and safety are equally important.

Technical Specifications

Door Leaf Thickness: 45mm / 50mm / 55mm
Face Sheet: 0.8mm / 1.0mm / 1.2mm Galvanized Steel
Infill: High Density Rockwool (Fire Rated Core)
Fire Rating: 60 / 90 / 120 Minutes
Finish: Wood Grain Powder Coating / Heat Transfer Wooden Finish
Frame: GI Steel Frame (1.2mm / 1.6mm)
Gasket: Intumescent Fire & Smoke Seal
Hardware: Fire-rated Hinges, Lock, Door Closer, Panic Bar (if required)

Finish Options

  • Teak Wood Finish

  • Walnut Finish

  • Oak Finish

  • Custom Wood Texture

  • Any RAL Inner Frame Color

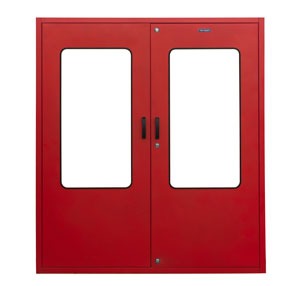

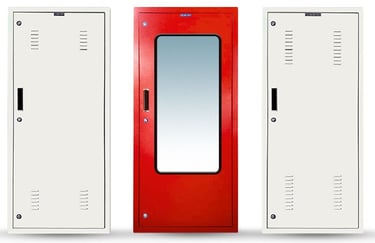

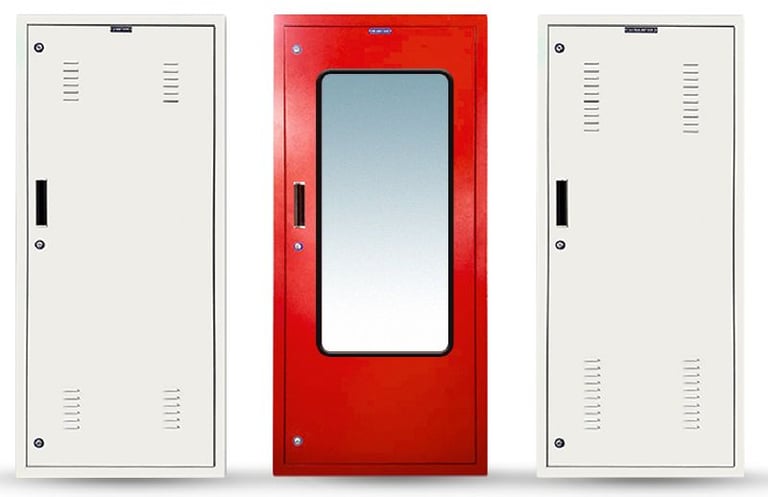

Metal Shaft Doors

Metal Shaft Doors are specially designed for electrical shafts, plumbing shafts, duct shafts, and service areas in residential, commercial, and industrial buildings. These doors provide safe and durable access to maintenance zones.

Technical Specifications

Door Leaf Thickness: 40mm / 45mm
Face Sheet Thickness: 0.8mm / 1.0mm GI
Frame Thickness: 1.2mm / 1.6mm GI
Infill: Honeycomb / Rockwool (if fire rated required)
Finish: Epoxy Polyester Powder Coating (60–80 microns)
Color: Any RAL Shade
Locking: Mortise Lock / Cylindrical Lock / Tower Bolt
Ventilation: With or Without Louvers (as per requirement)

Optional Features

✔ Fire Rated Version (60 / 90 / 120 Minutes)
✔ Louvers for Ventilation
✔ Double Leaf Option
✔ Vision Panel (if required)
✔ SS Hardware

Applications

  • Electrical Shafts

  • Plumbing Shafts

  • Duct Shafts

  • Service Rooms

  • Maintenance Areas

Advantages

✔ Strong & Durable Construction
✔ Corrosion Resistant
✔ Low Maintenance
✔ Secure & Safe Access
✔ Custom Sizes Available

Advantages

✔ Strong & Durable Construction
✔ Corrosion Resistant
✔ Low Maintenance
✔ Secure & Safe Access
✔ Custom Sizes Available

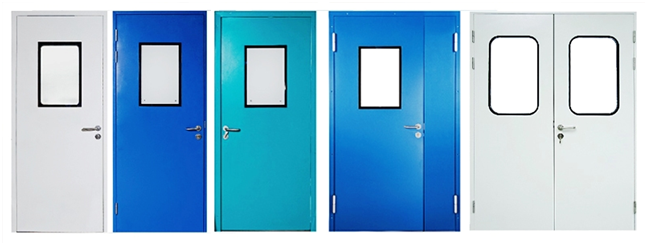

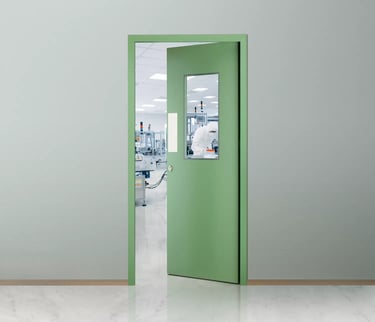

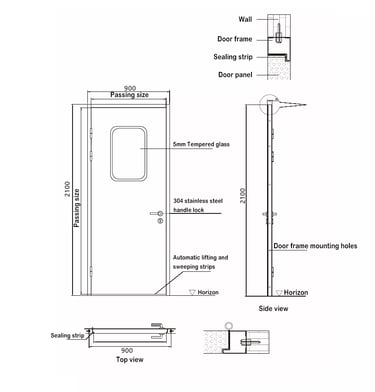

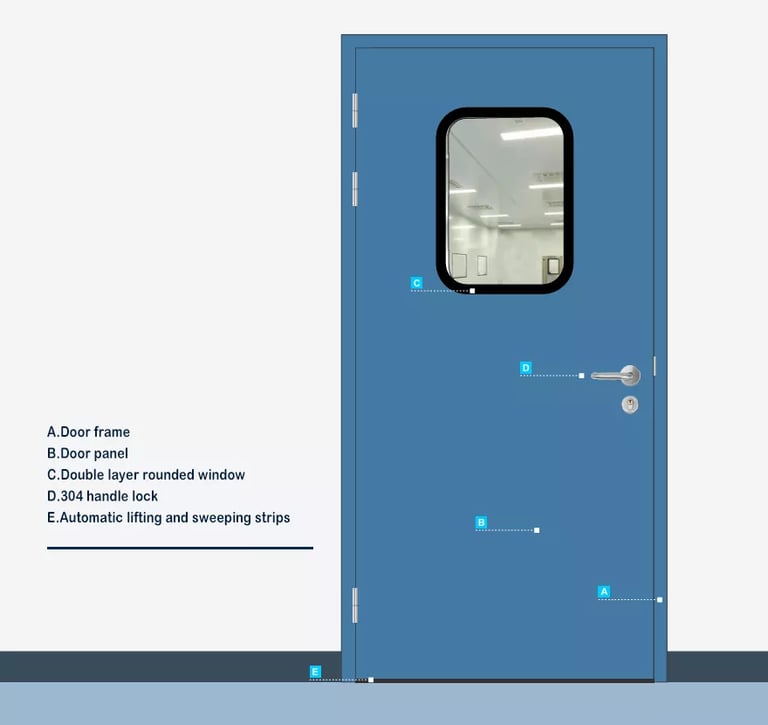

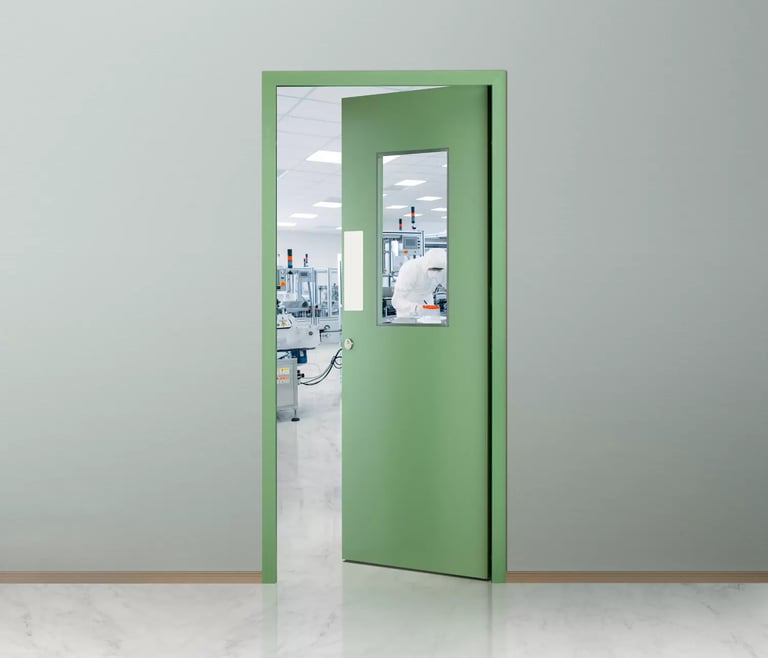

Clean Room Doors

What Are Clean Room Doors?

Clean Room Doors are specially designed doors used in controlled environments where air quality, hygiene, and contamination control are critical. These doors are installed in industries like pharmaceuticals, hospitals, laboratories, food processing units, and electronics manufacturing.

They help maintain

  • ✔ Air pressure balance

  • ✔ Dust & particle control

  • ✔ Bacteria-free environment

  • ✔ Smooth and easy cleaning surface

Key Features

  • Flush Surface Design – No dust collection edges

  • Hermetically Sealed – Airtight closing system

  • Antibacterial Coating – Powder-coated or laminated finish

  • Vision Panels – Double-glazed glass with flush fitting

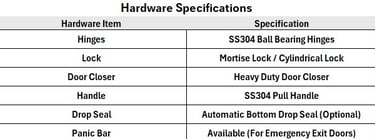

  • SS Hardware – Stainless steel hinges, handles & locks

  • Fire Rated Option Available (if required)

Applications

  • Pharmaceutical Manufacturing Units

  • Hospitals & Operation Theatres

  • Laboratories & Research Centers

  • Food Processing Industries

  • Electronics & Semiconductor Units

  • Clean Manufacturing Areas

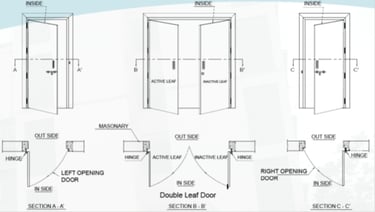

Types of Clean Room Doors

  1. Single Leaf Hinged Door

  2. Double Leaf Door

  3. Sliding Hermetic Door

  4. Fire Rated Clean Room Door

  5. Emergency Exit Door

  6. Interlocking Door System

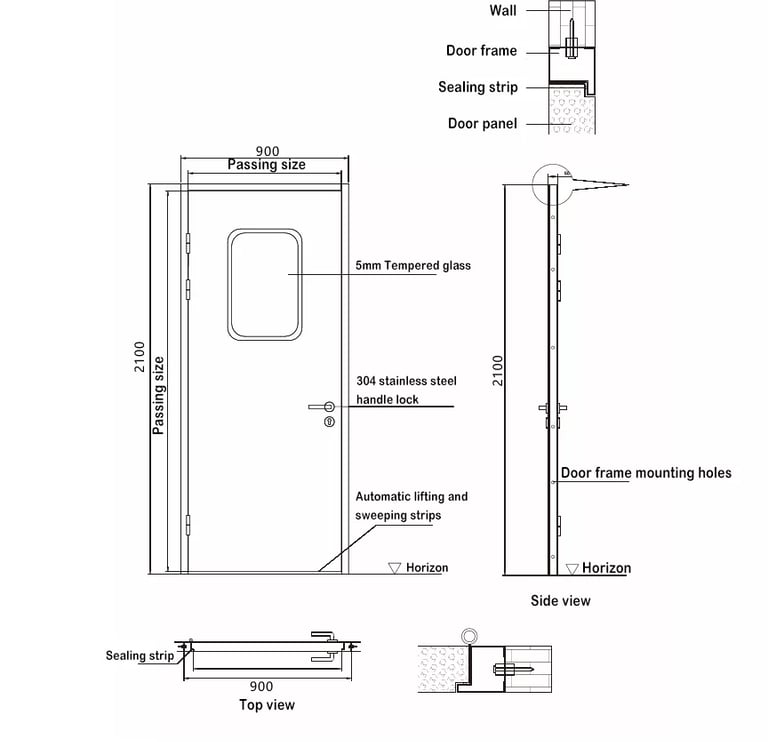

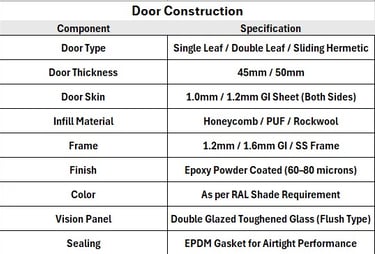

Technical Specifications (Standard)

  • Door Thickness: 45mm / 50mm

  • Frame: GI / SS / Powder Coated

  • Infill: Honeycomb / PUF / Rockwool

  • Finish: Powder Coated / Laminate / SS Finish

  • Glass: Double Glazed Toughened Glass

  • Hardware: SS304 Grade

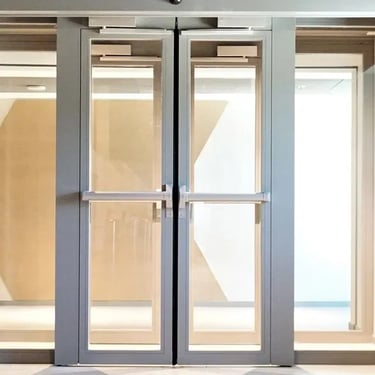

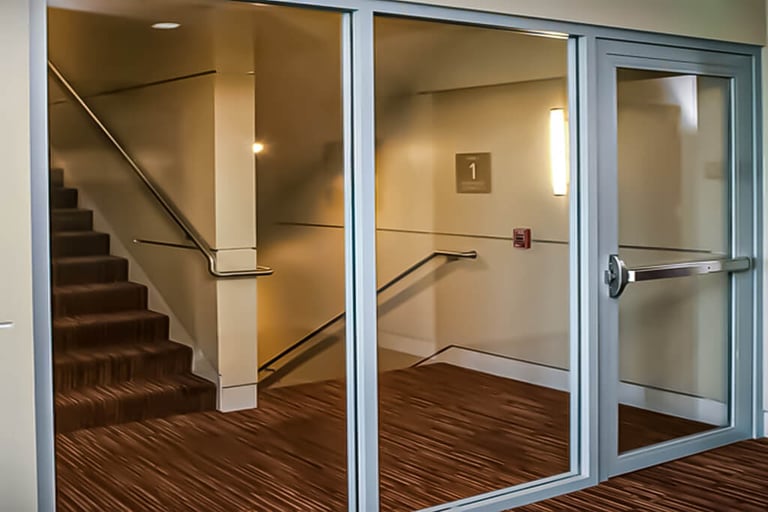

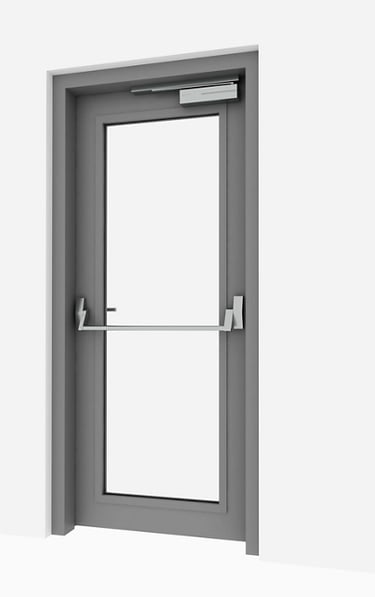

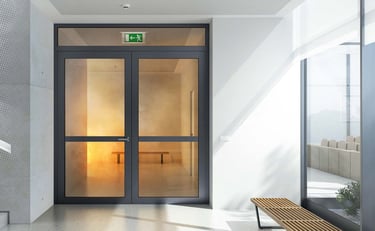

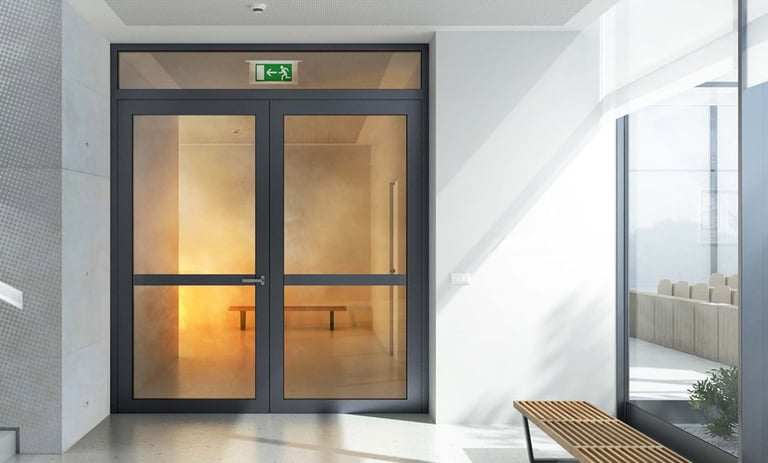

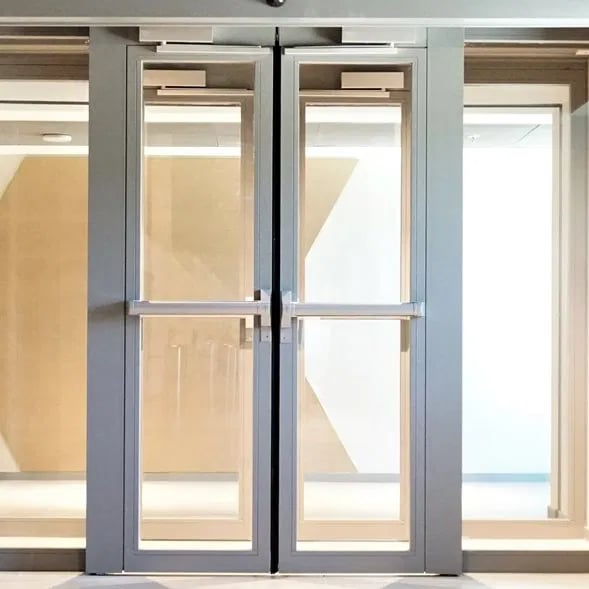

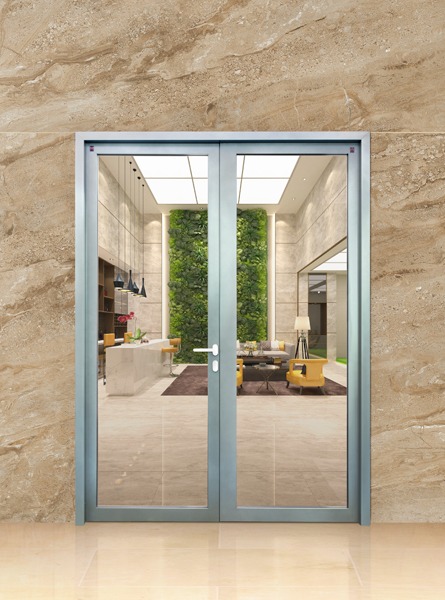

Glazed Fire Doors

Glazed Fire Doors are specially engineered fire-resistant doors fitted with certified fire-rated glass panels. These doors provide fire protection along with visibility and aesthetic appeal, making them ideal for commercial buildings, hospitals, hotels, and offices.

They are designed to prevent the spread of fire and smoke for a specified period while maintaining light transmission and visibility.

Fire Performance Features

  • ✔ Prevents spread of flame & smoke

  • ✔ Heat resistant up to certified duration

  • ✔ Intumescent seals expand during fire

  • ✔ Self-closing mechanism

  • ✔ Panic hardware option available

Applications

  • Commercial Office Buildings

  • Hospitals & Healthcare Facilities

  • Hotels & Hospitality

  • IT Parks & Corporate Buildings

  • Staircase & Fire Exit Areas

  • Industrial Facilities

Hardware Options

  • Fire Rated Mortise Lock

  • SS Ball Bearing Hinges

  • Door Closer (Fire Rated)

  • Panic Bar

  • Vision Glass Beading System

  • Automatic Drop Seal

Compliance

  • Tested as per IS Standards

  • Suitable for NBC Fire Norms

  • Certification available from approved laboratories

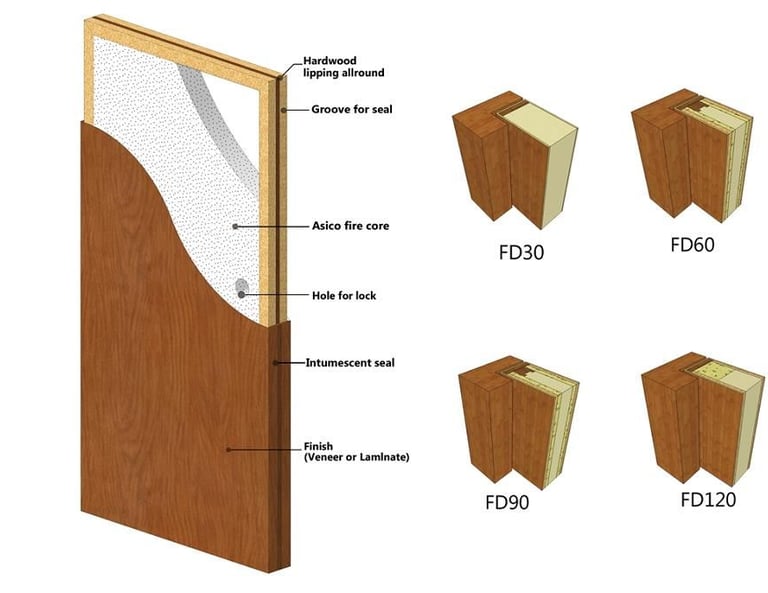

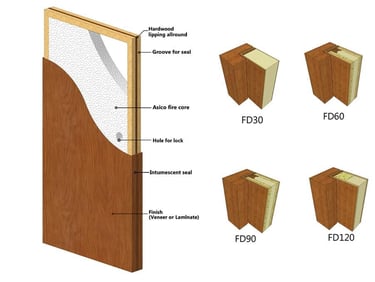

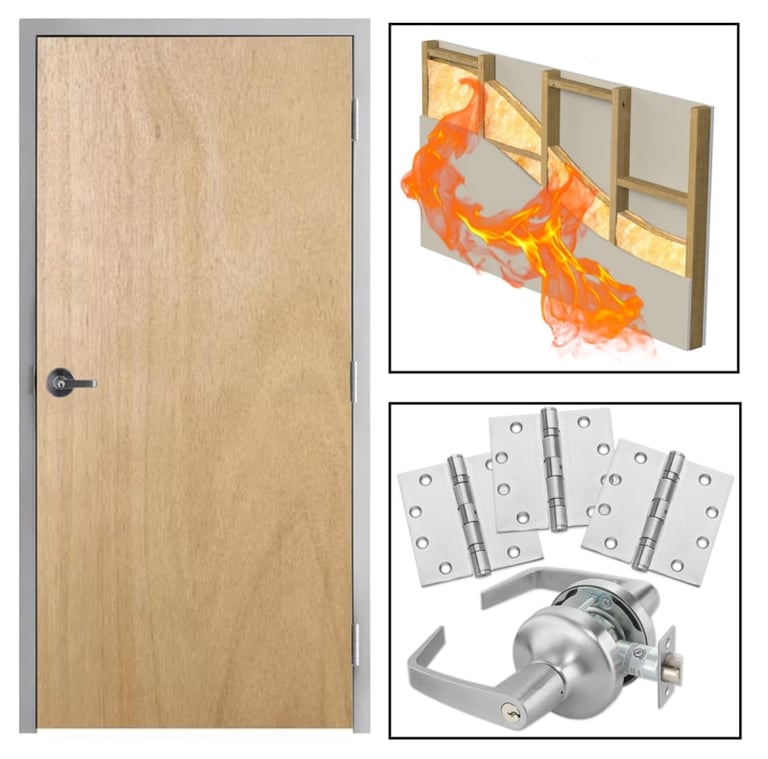

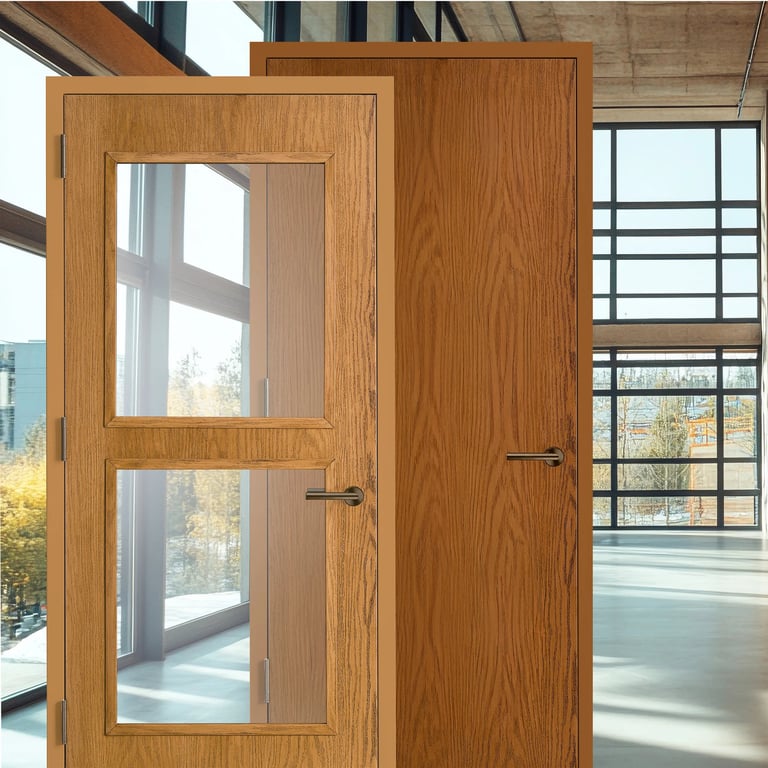

Wooden Fire Rated Doors

Wooden Fire Rated Doors are specially manufactured doors designed to resist fire and prevent the spread of flames and smoke for a specified duration (60 / 90 / 120 minutes). These doors combine fire safety with premium wooden aesthetics, making them ideal for commercial and residential projects.

They are widely used where both safety and appearance are important.

Applications

  • Hotels & Hospitality Projects

  • Hospitals & Healthcare Buildings

  • Commercial Offices

  • Residential Apartments

  • Staircase & Fire Exit Areas

  • Educational Institutions

Compliance

  • Tested as per IS Standards

  • Suitable as per NBC Fire Norms

  • Certification from approved laboratories (if required)

Performance Standards

  • Fire Resistance: 30 / 60 / 90 / 120 Minutes

  • Sound Insulation: 32 – 38 dB (Optional)

  • Surface Finish: PU Polish / Laminate / Veneer

  • Moisture Resistance: Available (Optional Treatment)

Standard Door Sizes

  • 900mm x 2100mm

  • 1000mm x 2100mm

  • Double Leaf: 1500mm – 1800mm Width

  • Custom Sizes as per Drawing

Performance Standards

  • Fire Resistance: 30 / 60 / 90 / 120 Minutes

  • Sound Insulation: 32 – 38 dB (Optional)

  • Surface Finish: PU Polish / Laminate / Veneer

  • Moisture Resistance: Available (Optional Treatment)

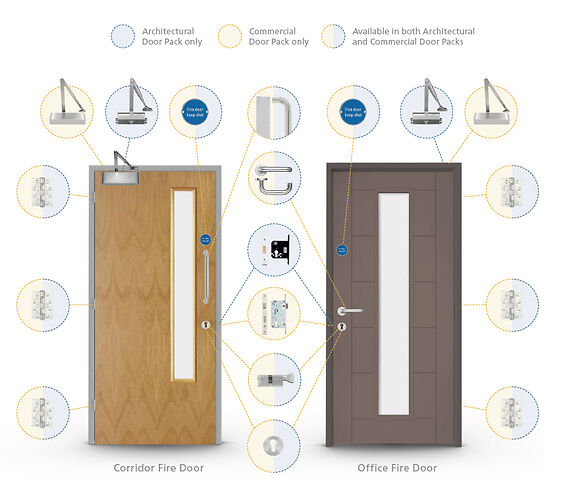

Hardware Compatibility

(All hardware must be fire rated & tested)

  • 3 Nos. SS Ball Bearing Hinges (100mm x 75mm x 3mm thick)

  • Fire Rated Mortise Lock

  • Hydraulic Door Closer

  • Panic Bar (For Exit Doors)

  • Door Coordinator (For Double Leaf Doors)
